    Energy Saving CNC Laser Cutting Machine for Stainless Steel , 3000W Power

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : PLUS 4025
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

    Energy Saving CNC Laser Cutting Machine for Stainless Steel , 3000W Power

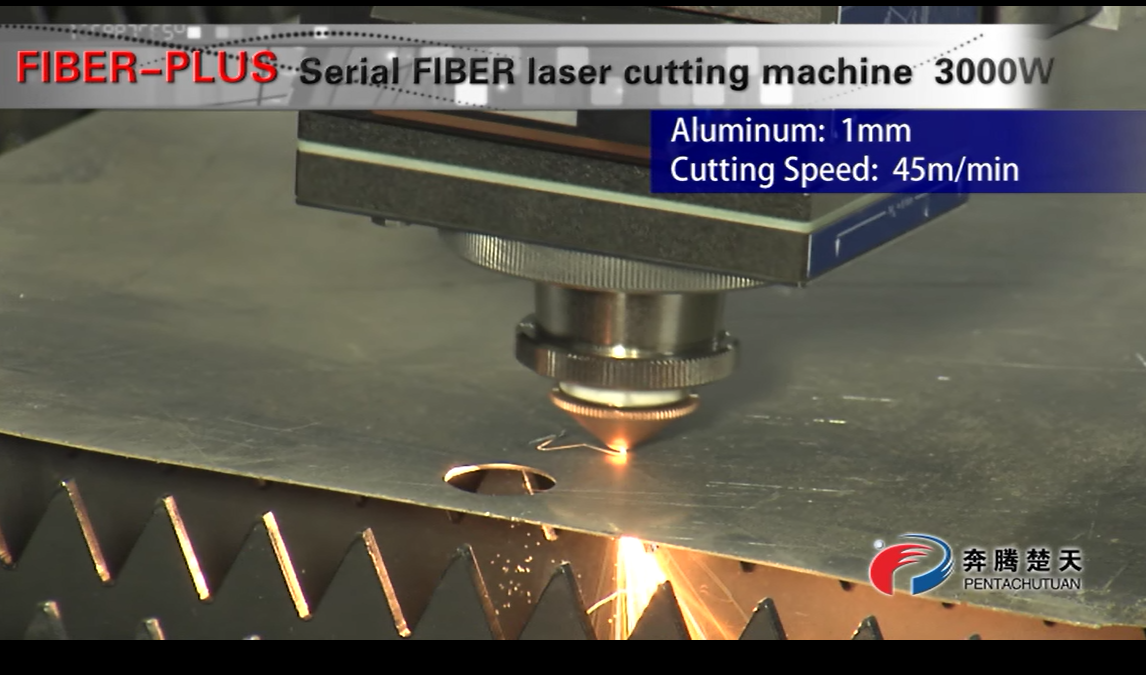

    Shipbuilding Energy Saving CNC Fiber Laser Cutting Machine


    Penta Plus laser cutting machine adopt imported fiber laser source and cutting head, New Z32 real time CNC system with dynamic and geometric JERK control.


    Smart Manager is originally imported from Europe. This software is based on the Windows XP system and can fully interface with Italy CNC system which original imported also.Therefore the real control of the machine, the laser source and software update is more convenient and fast Friendly interface, easy to learn and operation; easy to edit the numerical control program and high readability cutting parameters database is available, at the same time the real time adjustment to the cutting quality. Easier and faster in automatic edge-finding function.


    The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
    suction system,dross cleaner, enclosure and so on.


    Fiber Plus Model Features:


    -Equiped with IPG laser source from 1kw to 12kw

    -Machine Frame designs with suction system and cooper plate protection

    -Double servo motor driver, bring higher speed and acceleration,

    -Rapid Speed:120m/min,Acceleration:1.7G

    -Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

    -Double driving synchonous technology make sure high speed and precision cutting

    -Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

    -CNC control system and operation software, Lantek Nesting software

    -Fast pallet exchanger and full enclosure

    -Cutting database help users choose optimal cutting parameter

    -Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available


    Technical specifications


    ModelPLUS 4025
    Power3000W
    Rapid Speed120m/min
    Maximum Acceleration1.7G
    VDI 3441 Accuracy±0.03mm/m
    Mechanical Repeatability±0.01mm/m
    Maximum Thickness Mild Steel20mm
    Maximum Thickness Stainless Steel10mm
    Table Travel4000mm × 2500mm

    Application


    Mainly for cutting metallic material such as mild steel, stainless steel, aluminum
    alloy ,titanium alloy , high temperature alloy ect


    Penta Laser Cutting Head


    Penta Workshop
