    High Speed Auto Laser Tube Pipe Cutting Machine for length 7m 10m

    Ask Lasest Price
    Brand Name : Penta Laser
    Delivery Time : 50 Days Upon Receipt of Payment
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Model Number : WHIRL 7010
    • Product Details
    • Company Profile

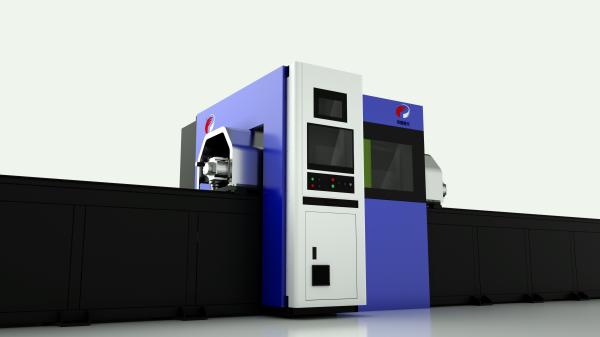

    High Speed Auto Laser Tube Pipe Cutting Machine for length 7m 10m


    High Speed Auto Laser Tube Pipe Cutting Machine for length 7m 10m
    Introduction
    Penta WHIRL Series are designed and manufactured for tube cutting, mainly used for processing of circular tube, square tube, oval tube and other kinds of special shaped products. It supplys good solution for tube cutting with its good performance.
    Features
    -Can cut cylindrical holes in different direction and with different diameters on main tube; Meet the branch pipe axis intersect with the vertical head axis eccentricity and eccentric.
    -Can cut the curve cutting cylindrical end in the pipe end; meet the branch pipe axis intersect with the vertical head axis eccentricity and eccentric, as well as the tilt intersection.
    -Can cut oblique cutting face on tube end.
    -Can cut branch pipe axis end which intersected with the circular main pipe.
    -Can cut through square tubes and realize 360 degree rotation cutting.
    -Can cut square hole and waist shape hole on circular tube.
    -1000W,2000W is available

    -7m,10m is available, also can customize the length based on clients' requirement.


    Specification


    ItemsUnitParameter
    X Travelmm7000
    Y travelmm400
    Z travelmm300
    U travelmm550
    Rotation axis AW travelDegreeUnlimited rotary
    Straight axis maximum positioning speedm/min90m/min
    Straight axis positioning accuracy(VDI 3441)mm/m± 0.1
    Straight axis re-positioning accuracymm± 0.05
    Rotation axis maximum speedTurn/min90
    Rotation axis re-positioning accuracyArc-minute8
    ChuckPieceMajor one/center one 2 chucks
    Control type of chuckchucking automatically
    Clamping tube’s diameter rangemm20-200
    Dimensionm

    9 X 3 X 2.6
