    High Precison CNC Fiber Laser Cutting Machine for Sheet Metal , 12000W Power

    Super High Power CNC Sheet Metal Fiber Laser Cutting Machine


    PENTA LASER Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.Penta BOLT fiber laser cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
    Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good, slitting rectangular cross-section shapes appear to be regular.


    Technical Specification


    ModelBOLT 3015
    Rate output power12000 W
    Rapid Speed200 m/min
    Maximum Acceleration4.0 G
    Accuracy±0.03 mm/m
    Mechanical Repeatability±0.01 mm/m
    Maximum cutting thickness of mild steel25 mm
    Maximum cutting thickness of stainless steel50 mm
    Working Table3000 mm ×1500 mm

    Advantages


    Stable Mainframe

    Efficient Control System

    Pre-perforation System

    Imported Operating System Smart Manager

    The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
    suction system,dross cleaner, enclosure and so on.

    New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

    Smart Manager is originally imported from Europe and based on the Windows platform.
    Imported nesting software function

    Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

    Accomplish the pre-perforation as settled


    Features


    - IPG or Trudisk laser source from 1kw to 12kw at your choice

    - Double servo motor driven synchronously, bring higher speed and acceleration

    - High speed movement and quick startup and shutdown

    - Pallet exchange at the same time to decrease the exchange time

    - Double driving synchonous technology make sure high speed and precision cutting

    - Fast pallet exchanger and full enclosure

    - Handy embedded cutting database

    - Auto Focus Cutting Head dedicated for high power (Precitec)

    - Dedicated laser CNC that makes the best and most of the laser


    Applications


    The BOLT series are suitable for sheet-metal working, machine manufacturing, metal material cutting and parts manufacturing. especially for the cutting processing for moderately thick sheet(carbon steel,stainless steel,aluminum alloy).

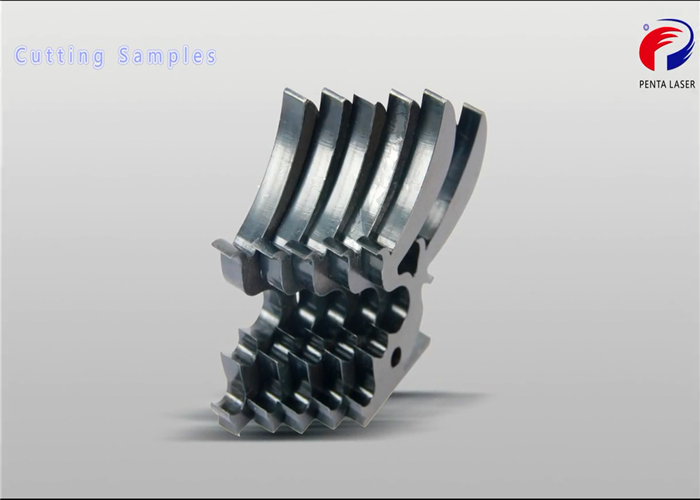

    Samples



    Quality High Precison CNC Fiber Laser Cutting Machine for Sheet Metal , 12000W Power for sale
