    Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : BOLT 3015
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

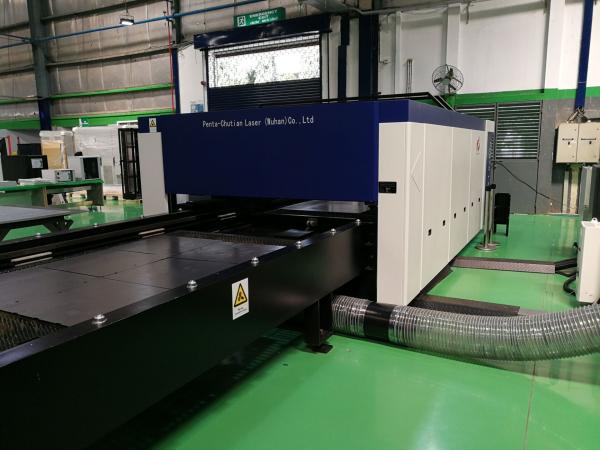

    Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size


    Metal Laser Cutting Machine 25mm Mild Steel Travel 3000 mm ×1500 mm


    PENTA LASER Bolt Series has Stable Mainframe, the base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,suction system,dross cleaner, enclosure and so on. It's Penta's high end series for customers that demands extremely high performance and efficiency.


    Features


    - IPG or Trudisk laser source from 1kw to 12kw at your choice

    - Double servo motor driven synchronously, bring higher speed and acceleration

    - Double driving synchonous technology make sure high speed and precision cutting

    - Auto Focus Cutting Head dedicated for high power (Precitec)

    - Dedicated laser CNC that makes the best and most of the laser

    - Fast pallet exchanger and full enclosure

    - Handy embedded cutting database


    Technical Specification


    ModelBOLT 3015
    Rate output power6000 W
    Rapid Speed200 m/min
    Maximum Acceleration4.0 G
    Accuracy±0.03 mm/m
    Mechanical Repeatability±0.01 mm/m
    Maximum cutting thickness of mild steel25 mm
    Maximum cutting thickness of stainless steel20 mm
    Working Table3000 mm ×1500 mm

    Advantages


    Imported Operating System Smart Manager

    Smart Manager is originally imported from Europe. This software is based on the Windows
    XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.


    Efficient Control System

    New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners


    Imported nesting software function

    Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate


    Samples



    Quality Metal Fiber Laser Cutting Machine Double Drive with 3000mm ×1500mm Size for sale
