    High Processing Ability Metal Laser Cutting Machine For Bolt Series , 200m/min Rapid Speed

    High Processing Ability Bolt Series Metal Laser Cutting Machine


    Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.


    Features

    - IPG or Trudisk laser source from 1kw to 12kw at your choice

    - Double servo motor driven synchronously, bring higher speed and acceleration

    - Double driving synchonous technology make sure high speed and precision cutting

    - Auto Focus Cutting Head dedicated for high power (Precitec)

    - Dedicated laser CNC that makes the best and most of the laser

    - Fast pallet exchanger and full enclosure

    - Handy embedded cutting database


    Technical Specification

    ModelBOLT
    Rapid Speed (m/min)200 (acceleration 4G)
    Accuracy (mm/m)±0.03
    Mechanical Repeatability (mm/m)±0.01
    Rate output power(W)20003000400060008000/10000/12000
    Maximum cutting thickness of mild steel (mm)1618202225
    Maximum cutting thickness of stainless steel (mm)6-88-10122030
    Working Table(mm)3000×1500/4000×2000/6000×2000/6000×2500/8000×2000

    Advantages


    Stable Mainframe

    The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
    suction system,dross cleaner, enclosure and so on.


    Efficient Control System

    New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners


    Imported Operating System Smart Manager

    Smart Manager is originally imported from Europe. This software is based on the Windows
    XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.


    Imported nesting software function

    Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate


    Pre-perforation System

    Accomplish the pre-perforation as settled

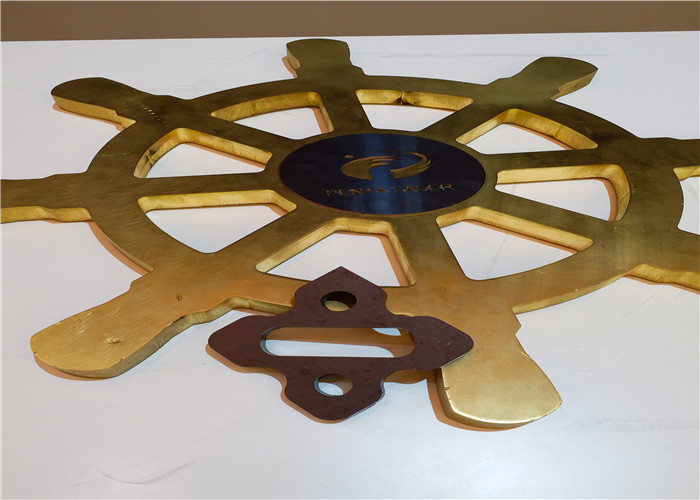

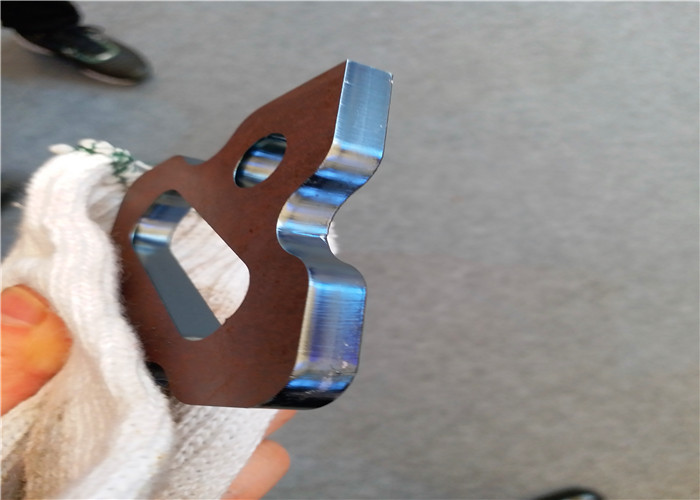

    Samples
