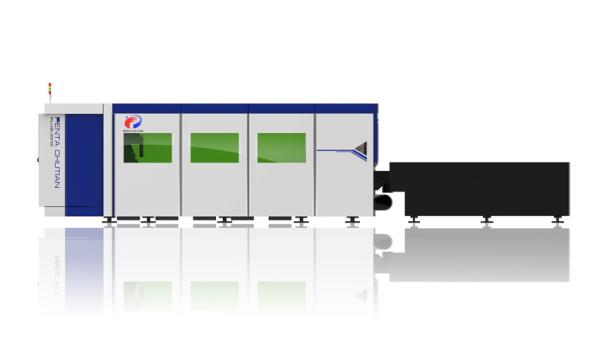

Stable High Power Fiber Laser Cutting Machine for Aerospace Oil Drilling

    Buy cheap Stable High Power Fiber Laser Cutting Machine for Aerospace Oil Drilling from wholesalers

    Buy cheap Stable High Power Fiber Laser Cutting Machine for Aerospace Oil Drilling from wholesalers
    • Buy cheap Stable High Power Fiber Laser Cutting Machine for Aerospace Oil Drilling from wholesalers

    Stable High Power Fiber Laser Cutting Machine for Aerospace Oil Drilling

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : PLUS II 6022
    Delivery Time : 50 Days Upon Receipt of Payment
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    • Product Details
    • Company Profile

    Stable High Power Fiber Laser Cutting Machine for Aerospace Oil Drilling

    Stable High Power Fiber Laser Cutting Machine for Aerospace Oil Drilling


    Features


    Penta PLUS II laser cutting series adopted world’s best imported fiber laser source with stable performance

    The optic electricity conversion rate of fiber laser is three times than CO2 laser, which is more energy conservation and environmental friendly

    Power consumption of fiber laser just 20%-30% of similar CO2 laser cutting machine, lower running cost

    Adopted gantry structure, dynamic performance is good

    Equipped with new Z32 real time CNC system, with dynamic and geometric JERK control, which can guarantee efficiency and accuracy during high speed running process

    X,Y,W Axial Rack adopt GUDEL brand which imported from switzland to guarantee the long-term stability and reliable running;

    There is collection device for collecting small cutting material and metal powder


    Technical specifications


    ModelPLUS II 6022
    Table Travel6000mm*2200mm
    Mechanical Accuracy(VDI 3441)±0.03mm/m
    Mechanical Repeatability±0.01mm/m
    Rapid Speed130m/min
    Maximum Acceleration2.0G

    Laser Power

    6000W
    Laser Source OptionIPG/TRUMPF
    Dimension(Exchange Pallet included)

    10260mm × 3500mm × 2300mm /

    14740mm × 3500mm × 2320mm


    Range of Application


    Sutiable for thick sheet cutting and widely used in the fileds of aerospace, high-speed locomotive, shipbuilding and oil drilling equipment etc.

    Leading beam compensation technology meets the demand of large-format sheet cutting.
