TRUMPF 4000W Mild Steel Sheet Metal Laser Cutting Machine

Penta Plus laser cutting machine adopt imported fiber laser source and cutting head, New Z32 real time CNC system with dynamic and geometric JERK control.

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Fiber Plus Model Features:

- Equiped with TRUMPF laser source from 2kw to 6kw

- Machine Frame designs with suction system and cooper plate protection

- Double servo motor driver, bring higher speed and acceleration,

- Rapid Speed:130m/min,Acceleration:2.0G

- Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

- Double driving synchonous technology make sure high speed and precision cutting

- Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

- CNC control system and operation software, Lantek Nesting software

- Fast pallet exchanger and full enclosure

- Cutting database help users choose optimal cutting parameter

- Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available

Advantages

Stable Mainframe

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Efficient Control System

New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

Imported Operating System Smart Manager

Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

Imported nesting software function

Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

Pre-perforation System

Accomplish the pre-perforation as settled

Technical specifications

Application

Mainly for cutting metallic material such as mild steel, stainless steel, aluminum
alloy ,titanium alloy , high temperature alloy ect. Sheet-metal working, machine manufacturing, metal material cutting and parts manufacturing, especially for the cutting processing for moderately thick sheet.

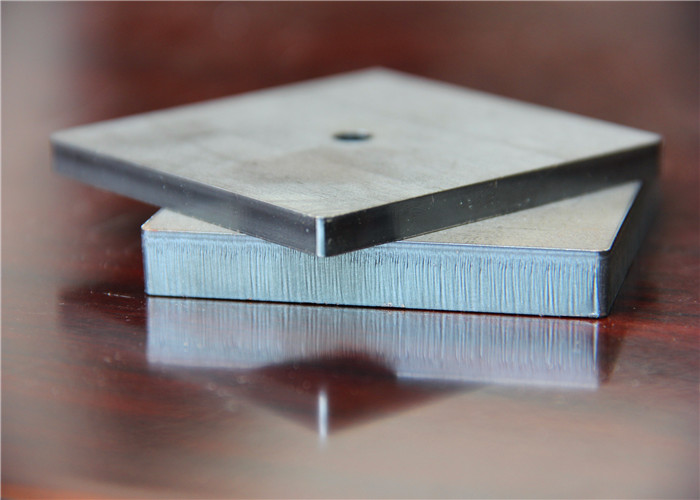

Samples

ABOUT US

Penta Laser (Wenzhou) Co., Ltd is a joint venture of Italy EL.EN group and chutian laser group, Penta Laser is specialized in researching and developing high-power laser cutting and welding machines. With more than 30 years of experience in laser system from El.En Group Italy, Penta Laser has core technologies in both manufacturing advanced high power laser source and CNC machinery integration with high compatibility. All design development, production and quality control strictly follow European standards, as final integration is done in China under the quality testing by Italian engineers.

EL.EN. GROUP

1981: Foundation of El.En., acronym of Electronic Engineering.

1983: Development of the first CO2 laser sources for medical application, as well as of switching power supplies for lasers.

1992: Foundation of Cutlite Penta S.r.l., for production of industrial cutting and marking systems being equipped with medium and high power laser sources developed and produced by El.En.

2000: El.En. S.p.A. is quoted on the Italian new market in Milan.

2002: El.En. improves it’s maximum laser power with the launch of the 6kW CO2 laser for metal cutting and welding applications.

2003:Acquisition of Lasercut, an American company for metal cutting and die-board laser system production.

2010:El.En. S.p.A. has more than 20 branch company in the globe market and the annual sales volume is more than 300 million Euro

Chutian Laser Group

Chutian laser group founded in 1985 which is China's largest manufacturer of laser products with the most complete product categories and the most complete market network. It is the core enterprise of "Wuhan · China optical valley" and the leader of China's laser industry.

1985 Founded in Wuhan optical valley;

1986 Developed the first laser device for welding pacemakers

1988 Developed China's first laser welding machine;

2006 Founded Penta Chutian Laser (Wuhan) Co., Ltd. Joint Venture with Italy ELEN group, specializing in the production of high-power laser cutting machines.

2008 Penta Chutian high-power cutting machine used for "shenzhou 7" and "shenzhou 8" projects, which became a large supplier of carrier rocket in China.

2012 Penta Laser (Wenzhou) Co., Ltd. was established which brings by the local government

2018 The annual sales volume of Penta Laser is about 15 billion USD

Penta Laser (Wenzhou) Co., Ltd is introduced to Wenzhou city by the government as an important industrial project with the overall investment of 500 million RMB, and annual production capability is up to 3 billion RMB. Penta Laser (Wenzhou) Co., Ltd is the largest processing equipment production base in Zhejiang province and East China, and the largest high power laser cutting machine exporter in China.

Penta Laser brings in advanced Italian laser application technology, and uses the key parts from famous international brands. Strictly followed European standards, Penta’s products are renowned for its stability, reliability, and fast-response service as well. We have service and training centers in 35 major Chinese cities and more than 10 countries all over the world.

Penta Laser’s philosophy is to be the laser application expert and create value for clients, and develops lots of advanced laser processing equipment. In early 2018. we successfully developed the first 15000W super high power fiber laser cutting machine in China, At the same time, R&D intelligent pipe laser cutting machine, robot 3D laser cutting machine, auto loading and unloading system. Those advanced laser processing machines are used broadly in sheet-metal processing, machining, car, locomotive, ship-built, aerospace, leather marking and so on. Realize large quantity sales in 16 countries and areas in Europe, America, and Asia.we expect to create the laser application revolution in the smart manufacturing era.
