4000W Sheet Metal Laser Cutting Machine For Thin And Thick Metal Plate

    Buy cheap 4000W Sheet Metal Laser Cutting Machine For Thin And Thick Metal Plate from wholesalers

    Buy cheap 4000W Sheet Metal Laser Cutting Machine For Thin And Thick Metal Plate from wholesalers
    • Buy cheap 4000W Sheet Metal Laser Cutting Machine For Thin And Thick Metal Plate from wholesalers

    4000W Sheet Metal Laser Cutting Machine For Thin And Thick Metal Plate

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : BOLT 4025
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receiving Down Payment
    • Product Details
    • Company Profile

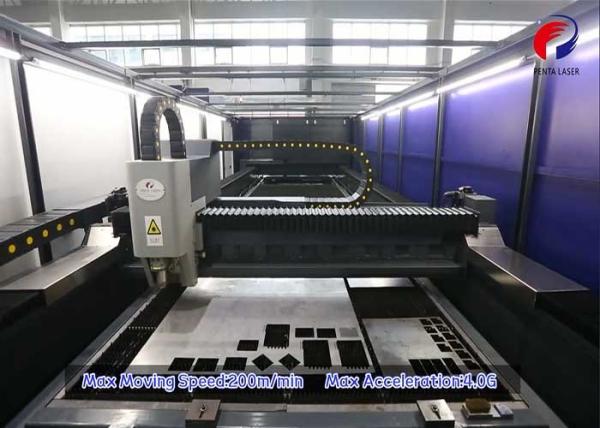

    4000W Sheet Metal Laser Cutting Machine For Thin And Thick Metal Plate


    TRUMPF Disk Laser Source 4000W Perfect Performance Metal Fiber Laser Cutting Machine


    Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.


    Features


    - TRUMPF Laser Source 3kw to 6kw at your choice

    - Double servo motor driven synchronously, bring higher speed and acceleration

    - Double driving synchonous technology make sure high speed and precision cutting

    - Auto Focus Cutting Head dedicated for high power (Precitec)

    - Dedicated laser CNC that makes the best and most of the laser

    - Fast pallet exchanger and full enclosure

    - Handy embedded cutting database


    Technical Specification


    ModelBOLT 4025
    Rate output power4000 W
    Rapid Speed180 m/min
    Maximum Acceleration2.2 G
    Accuracy±0.03 mm/m
    Mechanical Repeatability±0.01 mm/m
    Maximum cutting thickness of mild steel20 mm
    Maximum cutting thickness of stainless steel12 mm
    Working Table4000 mm ×2500 mm

    Advantages


    Imported nesting software function

    Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

    Pre-perforation System

    Accomplish the pre-perforation as settled

    Stable Mainframe

    The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
    suction system,dross cleaner, enclosure and so on.

    Efficient Control System

    New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

    Imported Operating System Smart Manager

    Smart Manager is originally imported from Europe. This software is based on the Windows
    XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.


    Samples
