Hand Held 1500W Raycus Fiber Laser Welding Machine

    Buy cheap Hand Held 1500W Raycus Fiber Laser Welding Machine from wholesalers

    Buy cheap Hand Held 1500W Raycus Fiber Laser Welding Machine from wholesalers
    • Buy cheap Hand Held 1500W Raycus Fiber Laser Welding Machine from wholesalers
    • Buy cheap Hand Held 1500W Raycus Fiber Laser Welding Machine from wholesalers
    • Buy cheap Hand Held 1500W Raycus Fiber Laser Welding Machine from wholesalers

    Hand Held 1500W Raycus Fiber Laser Welding Machine

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : HW-1500
    Certification : CE
    Price : USD 20000-USD 50000
    Payment Terms : L/C, T/T
    Supply Ability : 200 Sets per Month
    Delivery Time : 30 Working Days Upon Receiving Down Payment
    • Product Details
    • Company Profile

    Hand Held 1500W Raycus Fiber Laser Welding Machine

    1500W Raycus Fiber Laser Welding Machine Hand Held Laser Welding Easy To Operate


    New design of SWAN series Hand Held laser welding machine. Easy to operate, able to weld SS,MS,AL etc. thin metal


    Laser Welding Advantages


    Higher Quality:
    Materials welded by self-melting, no base material is needed;
    Deeper penetration and higher welding strength;
    Welding surface is bright and smooth, no need for polishing;
    Less heat input with little thermal deformation


    Higher Efficiency:
    Efficiency improved several times than traditional arc welding


    Higher Flexibility:
    Welding of different materials: carbon steel, stainless steel, aluminum, etc.
    Different welding types: butt joint, lap joint, corner joint, flanging joint


    Environmental Friendly:
    Little smoke during welding


    Portable Mainframe

    Laser source and chiller are integrated into one machine, easy to move
    Upper and lower layer design for heat source isolation, ensuring working environment of laser source
    Easy to dismount and maintain


    Application
    Automobile: car body fusion welding,filler wire welding
    Metal processing: metal parts welding
    Locomotive:stainless steel welding, mild steel welding,aluminium alloy welding
    Aerospace: titanium alloy welding, supermalloy welding
    Home Appliances:Fume hood welding,tank welding,washing machine drum welding etc


    Wobble welding head:
    Six lighting mode, satisify different welding requirements
    Multiple nozzle options for different welding process
    Alumina handle, lightweight and comfortable to hold


    Welding Database

    30+ years laser welding experience of application in
    aerospace, metro, locomotive etc.
    Materials can be welded: carbon steel, stainless steel, aluminum, etc.


    Specifications

    ModelHW-1500
    Power1500W
    Power Regulation10%-100%
    Core Diameter50μm
    Cable Length10m
    Welding HeadWobble welding head
    Power Supply220V±10%/380V±10%
    WorKing Temperature10-40℃
    Laser Source OptionIPG/Raycus

    Penta Laser has service and training centers in 35 major Chinese cities and more than 10 countries all over the world. We will reply and provide maintenance instructions to customers through telephone within two hour or send well trained service engineer to conduct on-sight service within 24 hours.


    Laser Welding Head


    Swing welding head:Swing laser beam, weld joint is adjustable for higher welding width


    Laser Welding Head



    Samples

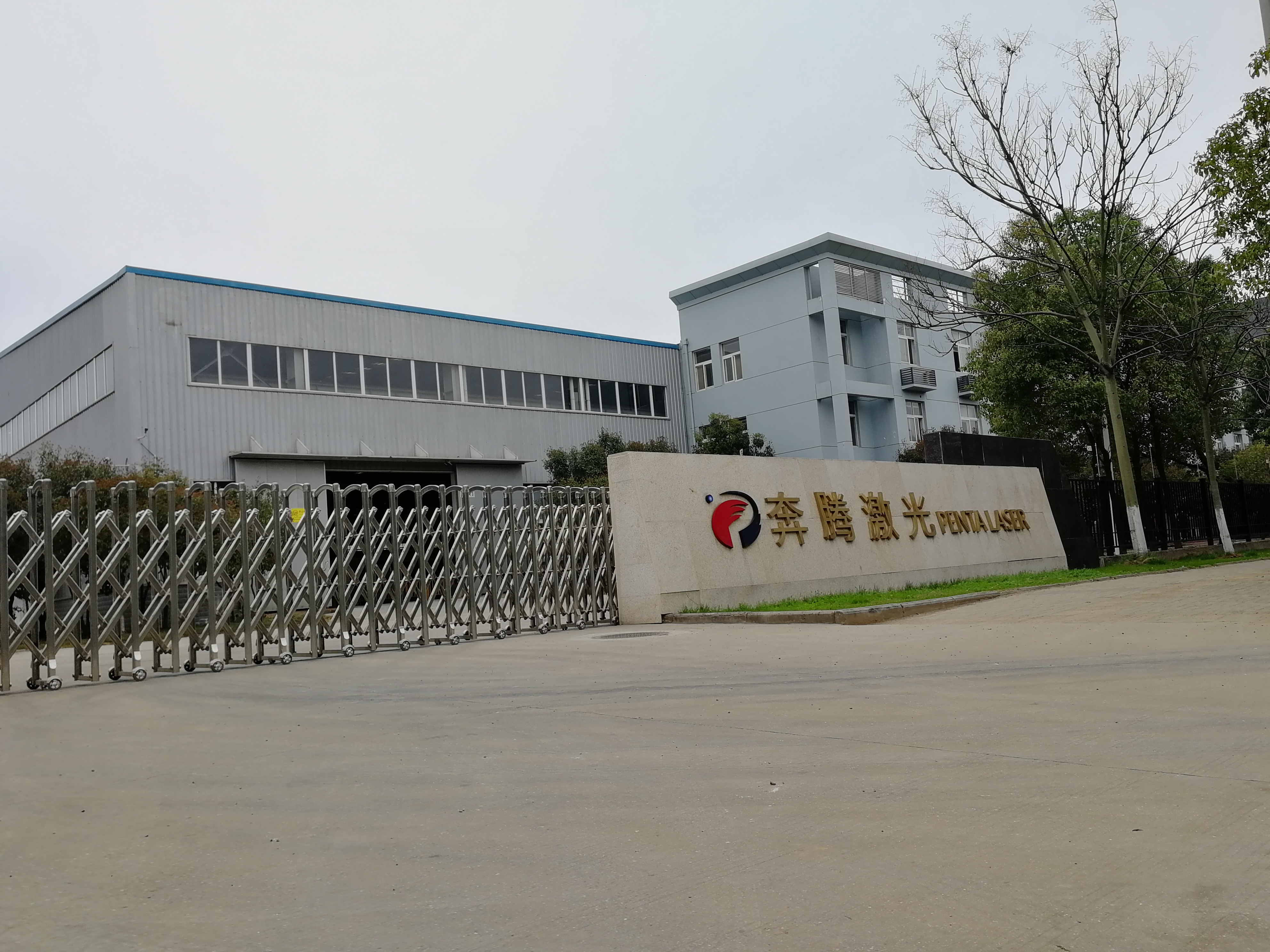

    Penta laser Factory
