2000W High Speed Fiber Laser Cutting Machine for Metal Thin Plate

    Buy cheap 2000W High Speed Fiber Laser Cutting Machine for Metal Thin Plate from wholesalers

    Buy cheap 2000W High Speed Fiber Laser Cutting Machine for Metal Thin Plate from wholesalers
    • Buy cheap 2000W High Speed Fiber Laser Cutting Machine for Metal Thin Plate from wholesalers

    2000W High Speed Fiber Laser Cutting Machine for Metal Thin Plate

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : PLUS Ⅱ 6022
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

    2000W High Speed Fiber Laser Cutting Machine for Metal Thin Plate


    2000W Industry Laser Cutting Machine Metal Sheet Machinery


    Penta PLUS II laser cutting series adopted world’s best imported fiber laser source with stable performance

    The optic electricity conversion rate of fiber laser is three times than CO2 laser, which is more energy conservation and environmental friendly

    Power consumption of fiber laser just 20%-30% of similar CO2 laser cutting machine, lower running cost

    Adopted gantry structure, dynamic performance is good

    Equipped with new Z32 real time CNC system, with dynamic and geometric JERK control, which can guarantee efficiency and accuracy during high speed running process

    X,Y,W Axial Rack adopt GUDEL brand which imported from switzland to guarantee the long-term stability and reliable running;

    There is collection device for collecting small cutting material and metal powder


    Fiber Plus Model Features:


    - Equiped with IPG laser source from 1kw to 12kw

    - Machine Frame designs with suction system and cooper plate protection

    - Double driving synchonous technology make sure high speed and precision cutting

    - Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

    - CNC control system and operation software, Lantek Nesting software

    - Fast pallet exchanger and full enclosure

    - Cutting database help users choose optimal cutting parameter

    - Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available

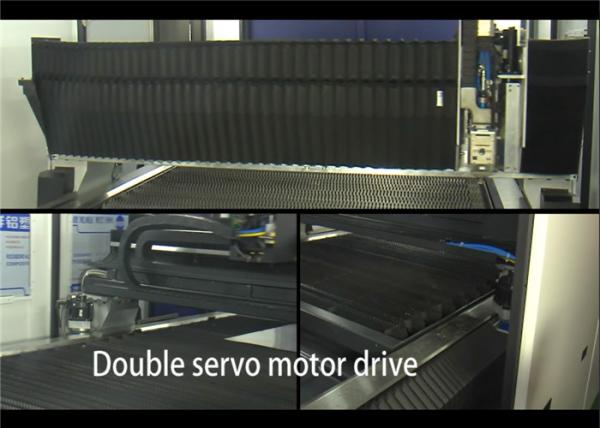

    - Double servo motor driver, bring higher speed and acceleration,

    - Rapid Speed:130m/min,Acceleration:2.0G

    - Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc


    Technical specifications


    ModelPLUS Ⅱ 6022
    Power2000W
    Rapid Speed130m/min
    Maximum Acceleration2.0G
    VDI 3441 Accuracy±0.03mm/m
    Mechanical Repeatability±0.01mm/m
    Maximum Thickness Mild Steel16mm
    Maximum Thickness Stainless Steel8mm
    Table Travel6000mm × 2200mm

    Range of Application


    Sutiable for thick sheet cutting and widely used in the fileds of aerospace, high-speed locomotive, shipbuilding and oil drilling equipment etc.Leading beam compensation technology meets the demand of large-format sheet cutting.


    Workshop
