    High Power CNC Laser Cutting Equipment , Fiber Optic Laser Cutting Machine

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : BOLT 4020
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

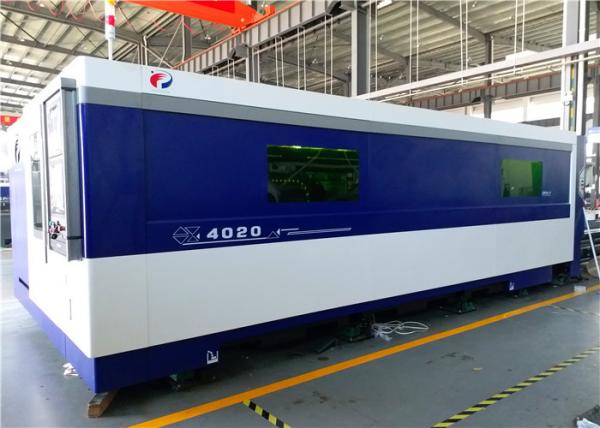

    High Power CNC Laser Cutting Equipment , Fiber Optic Laser Cutting Machine


    High Power Stable Ship Building Laser Cutting Equipment Fiber Laser Cutting Machine


    Penta BOLT 4020 Series Super High Power Fiber laser machine for customers that demands extremely high performance and efficiency.

    Penta Laser obedience to the operation philosophy of to be the application expert and creat value for clients, who developed a batch of international advanced laser processing equipment. In 2017, we successfully initial the China 10000W super high power fiber laser cutting machine, which can cut the stainless steel and aluminum with 30mm, and fill up the demestic market blank.

    Penta Laser insist the quality principle of carefulness, perseverance, High-quality, innovation and faith. We take the innovation as our guide, the quality as our life and the service as our obligation. In the smart manufacture epoch, lookiing forward to leading the laser application technology revolution together with you!

    With years of experience as a laser machine manufacturer, PENTA LASER has cemented its position as the world market leader in industrial high power laser cutting machinery.


    Features


    - IPG or Trudisk laser source from 1kw to 12kw at your choice

    - Double driving synchonous technology make sure high speed and precision cutting

    - Auto Focus Cutting Head dedicated for high power (Precitec)

    - Dedicated laser CNC that makes the best and most of the laser

    - Double servo motor driven synchronously, bring higher speed and acceleration

    - Fast pallet exchanger and full enclosure

    - Handy embedded cutting database


    Technical Specification


    ModelBOLT 4020
    Rate output power8000 W
    Rapid Speed200 m/min
    Maximum Acceleration4.0 G
    Accuracy±0.03 mm/m
    Mechanical Repeatability±0.01 mm/m
    Maximum cutting thickness of mild steel25 mm
    Maximum cutting thickness of stainless steel25 mm
    Working Table4000 mm ×2000 mm

    Advantages


    Stable Mainframe

    The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
    suction system,dross cleaner, enclosure and so on.

    Imported nesting software function

    Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

    Efficient Control System

    New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

    Imported Operating System Smart Manager

    Smart Manager is originally imported from Europe. This software is based on the Windows
    XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

    Pre-perforation System

    Accomplish the pre-perforation as settled


    Penta Workshop
