    Professional Laser Tube Cutting Equipment 700 W 2 In 1 Water Cooling System


    700W 2 in 1 Metal Tube Square Pipe Cutting CNC Fiber Laser Cutting Machine


    WHIRL 1007 pipe laser cutting machine mainly used for processing of circular tube, square tube,oval tube and other kinds of special shaped products. Enable cut cylindrical holes in different direction and with different diameters on main tube; Meet the branch pipe axis intersect with the vertical head axis eccentricity. Can cut branch pipe axis end which intersected with the circular main pipe. Can cut through tube with different materials .


    1. Application of gantry structure and iron cast cross-girder to achieve higher rigidity, stability, shock resistance.

    2. The machine owns perfect cooling system, lubrication system and dust removal system: ensuring operating stably, efficiently and durably.
    3. Originally-imported laser source and stable operating system to guarantee the best cutting effect.
    4. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
    5. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
    6. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.


    Technical Highlights


    1. Less wast cutting(less than 180mm)

    2. Italian original operation system,Smart Manager 4.0
    intersect with the vertical head axis eccentricity and eccentric, as well as the tilt inte

    3. Automatic centering and clamping

    4. Variable cutting paths available for setting different cutting parameter

    5. Variable diameter supporting system

    6. Enable cut the curve cutting cylindrical end in the pipe end; meet the branch pipe axis

    7. Professional Nesting Software


    Technical Specification


    ItemsUnitParameter
    X Travelmm10000
    Y travelmm400
    Z travelmm300
    U travelmm550
    Rotation axis AW travelDegreeInfinite Rotation
    Straight axis maximum positioning speedm/min90m/min
    Straight axis positioning accuracy(VDI 3441)mm/m± 0.1
    Straight axis re-positioning accuracymm± 0.05
    Rotation axis maximum speedTurn/min90
    Rotation axis re-positioning accuracyArc-minute8
    ChuckPiece2 chucks,major one/center one
    Control type of chuckAuto clamping
    Clamping tube’s diameter rangemmRound tube 20-200mm or other circumcircle less than 20mm special shaped tubes
    Dimensionm

    13.5(Length) X 3(width) X 2.6(Height)


    Application


    Fitness equipment, farming machines, Medical equipment,aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry

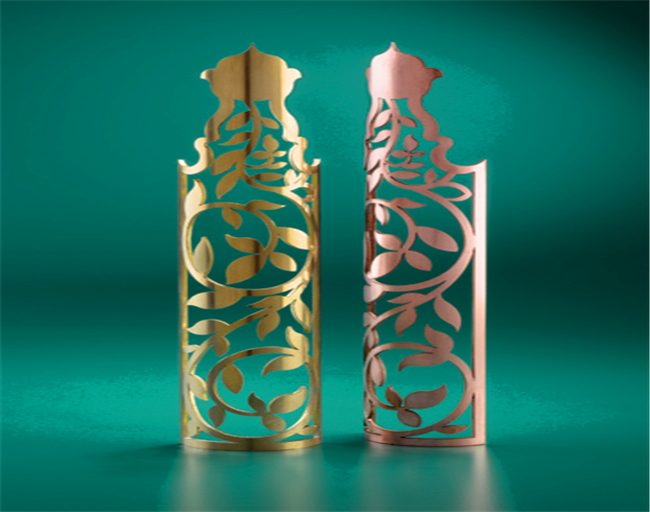

    Sample
