    Automobile Industry Metal Tube Laser Cutting Machine / CNC Tube Cutter

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : WHIRL PLUS 7510
    Certification : CE
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

    Automobile Industry Metal Tube Laser Cutting Machine / CNC Tube Cutter


    CNC Fiber Laser Metal Pipe Tube Cutting Equipment for Automobile Industry

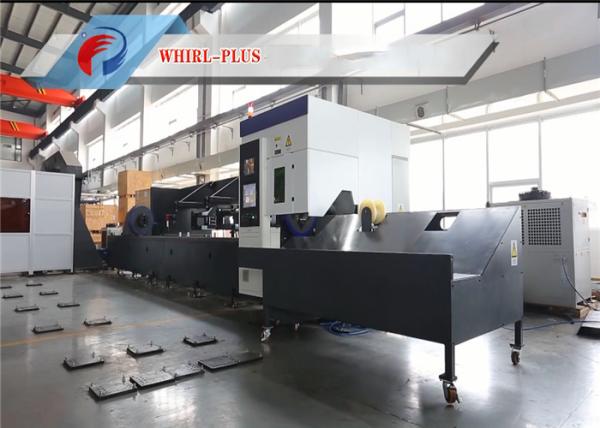

    WHIRL PLUS 7510 pipe laser cutting machine mainly used for processing circular tube, square tube, oval tube and other kinds of special shaped products. Enable cut cylindrical holes in different direction and with different diameters on main tube; Meet the branch pipe axis intersect with the vertical head axis eccentricity and eccentric; Enable cut the curve cutting cylindrical end in the pipe end; meet the branch pipe axis intersect
    with the vertical head axis eccentricity and eccentric, as well as the tilt intersection.Can cut oblique cutting face on tube end;branch pipe axis end which intersected with the circular main pipe;cut through square tubes and realize 360 degree rotation cutting; square hole and waist shape hole on circular tube; cut through tube with different materials.



    Product Features:


    1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.

    2. High-performance IPG laser source and stable operating system make the best cutting effect.

    3. WHIRL-PLUS Pipe laser cutting machine special made by chuck, feeding lathe bed, receiving lathe bed, beam, Z axis and so on five big institutions, chuck is controlled by CNC system, beam and the Z axis
    movement, to complete the specified graphics cutting function

    4. New Z32 real time CNC system, with dynamic and geometric JERK control
    5. Power modulation for the ultimate cutting quality in the corners

    6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
    7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
    8. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.



    Technical Highlights


    1. Less wast cutting(less than 180mm)

    2. Automatic centering and clamping

    3. Variable cutting paths available for setting different cutting parameter

    4. Variable diameter supporting system

    5. Italian original operation system,SmartManager 4.0

    6. Professional Nesting Software


    Technical Specification



    Model


    WHIRL PLUS 7510

    Power


    1000W

    Laser Source


    IPG / RAYCUS (Optional)

    Travel


    X:7500mm Y: 700mm Z:260mm

    Linear Acceleration


    1G

    Straight Axis Re-positioning Accuracy


    ±0.03mm

    Rotation Axis Maximum Speed


    190rpm

    Straight Axis Maximum Positioning Speed


    120m/min

    Rotation Axis ACP Travel


    360°

    Rotation Axis Re-positioning Accuracy


    ±8
    Control Type of ChuckAutomatic Clamping,Automstic Centering and
    Full Travel Without Changing Clamping Claws

    Clamping Pipe’s Diameter Range


    10-100mm

    Cutting Ability(Maximum)


    SS:5mm MS:10mm


    Applications


    1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
    2.Application Industries: Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.


    Company Introduction

    PENTA LASER is the joint-venture by El.En and Chutian Laser Group, both accumulating in laser industry for over 30 years. PENTA LASER is devoted in making high power laser cutting system, importing advanced technology from Italy and more than 90% of the parts are originally imported from famous brands company, the final integration is done is china under the quality testing by Italian engineers.

    PENTA LASER sticks to its principle of quality first, innovation driven and service oriented, we expect to creat laser application revolution in the smart manufacturing era, and creat value for customers.

    With the rapid development of PENTA LASER, we now have two manufacture bases located in Wenzhou(50,000㎡) and Wuhan(13,000㎡), and in 2019, we will start the construction of Shandong factory in Linyi,forming a situation of tripartite confrontation of East, Middle and North of China.
