500W CNC Laser Cutting Machine Fiber Laser Cutting System High Efficiency

    Buy cheap 500W CNC Laser Cutting Machine Fiber Laser Cutting System High Efficiency from wholesalers

    Buy cheap 500W CNC Laser Cutting Machine Fiber Laser Cutting System High Efficiency from wholesalers
    • Buy cheap 500W CNC Laser Cutting Machine Fiber Laser Cutting System High Efficiency from wholesalers

    500W CNC Laser Cutting Machine Fiber Laser Cutting System High Efficiency

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : CT-IF-500-3015ID
    Certification : CE
    Price : USD 100,000-USD 1000,000
    Payment Terms : L/C, T/T
    Supply Ability : 2000 Unit/Year
    Delivery Time : 30 Working Days Upon Receiving Down Payment
    • Product Details
    • Company Profile

    500W CNC Laser Cutting Machine Fiber Laser Cutting System High Efficiency


    500W CNC Laser Cutting Machine Fiber Laser Cutting System High Efficiency


    PENTA LASER


    •Penta Laser (Wuhan) was set up in 2007 by Italian El. En. Group, mainly dedicated in manufacturing and supplying High Power Laser cutting machine; with more than 30 years of experience in laser system from El.En Group Italy, Penta Laser has core technologies in both manufacturing advanced high power laser source and CNC machinery integration with high compatibility. All design, development, production and quality control strictly follow European standards, as final integration is done in China under the quality testing by Italian engineers.

    Fiber Laser Cutting System 500W IPG

    • High quality laser beam, perfect focus point, precise cutting line, high efficiency.
    • High speed laser cutting, twice faster than CO2 laser cutting.
    • High reliable performance, adopted with leading fiber technology in the world, the key component could used for more than 100000 hrs.
    • Low consumption in power supply.
    • Free maintenance.
    • Easy operation.
    • Fiber cable delivery, more flexible for integration.

    Applications:


    Fiber laser cutting is suitable for metal materials such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel, nickel titanium alloy, chromium nickel iron alloy, titanium alloy and etc. It is widely used in aerospace, automotive, ship buliding, machinery manufacturing, elevator manufacturing, advertising production, household appliances manufacturing, medical devices, hardware, decoration, metal processing services, and other manufacturing industries.


    FIBER VS CO2 VS DISC LASERS


    Fiber lasersCO2 lasersDISC lasers
    Transfer rate (electronic vs optical)30%10%15%
    MAX. Output power50kW20kW8kW
    BPP(4/5Kw)<2.568
    Pump lifetime>100,000hNA.10,000h
    Occupation(4/5Kw)<1 ㎡3 ㎡>4 ㎡
    MaintenanceNoYesYes
    Fiber deliveryYesNoYes
    StabilityGoodGoodGood
    Absorbility -- Steel351235
    Absorbility --Aluminum727

    Cutting capacity


    Output powerMaterialsThickness (mm)

    Speed

    (m/min)

    Protection GasGas pressure
    500WStainless Steel112Nitrogen1.8
    23Nitrogen16
    31Nitrogen1.8
    40.5Nitrogen2
    Mild Steel110Oxygen1
    24.8Oxygen0.7
    32.7Oxygen0.5
    41.5Oxygen0.3
    60.9Oxygen0.2

    Power cunsumption


    EquipmentPower consumption (kW/h)
    Fiber lasers≦2.5
    Machine tools≦10
    Chiller≦3
    Air compresser≦5.5
    Air dryer≦0.25
    Exhaust device≦3.5

    Machine Details:

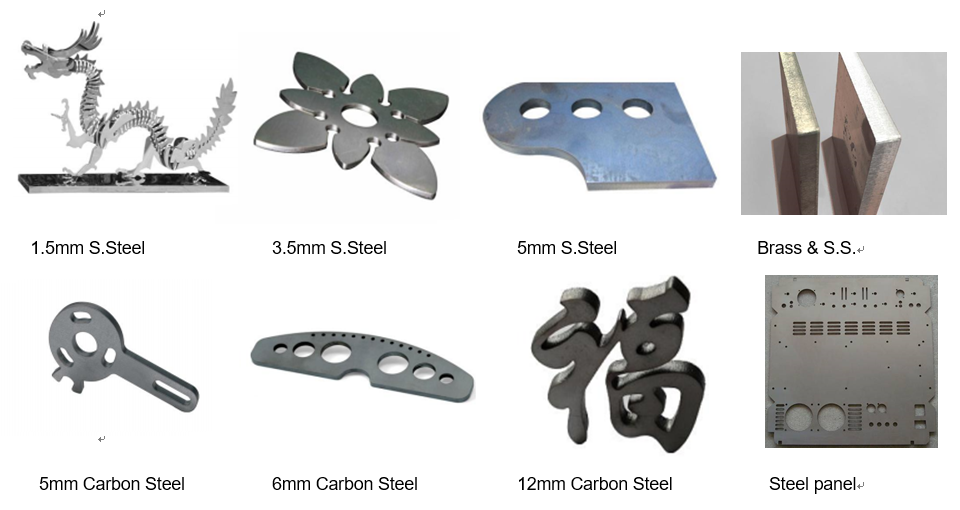

    Cutting Samples:
