High Reliability Sheet Metal Laser Cutting Machine with Precitec Cutting Head

    Buy cheap High Reliability Sheet Metal Laser Cutting Machine with Precitec Cutting Head from wholesalers

    Buy cheap High Reliability Sheet Metal Laser Cutting Machine with Precitec Cutting Head from wholesalers
    • Buy cheap High Reliability Sheet Metal Laser Cutting Machine with Precitec Cutting Head from wholesalers

    High Reliability Sheet Metal Laser Cutting Machine with Precitec Cutting Head

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : BULL 16035
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

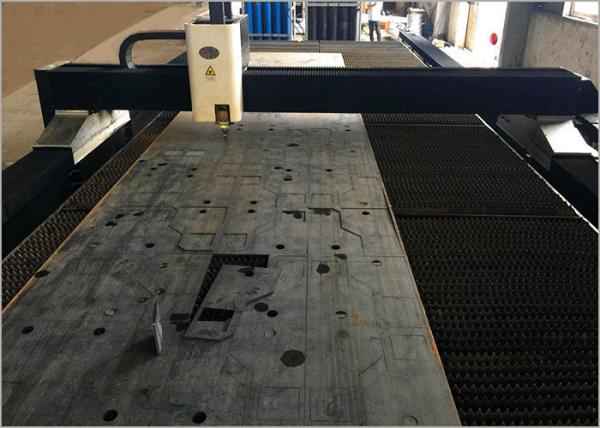

    High Reliability Sheet Metal Laser Cutting Machine with Precitec Cutting Head


    Large Format High Power Reliability Metal Sheet CNC Laser Cutting Machine


    Penta BULL Series fiber laser cutting machine have advantage of power saving, lower power consumption which is just 20%-30% compared to backpack CO2 Laser Cutting Machine.

    Fast moving, adopt imported CNC and control software, YASKAWA servo motor which is more simple and convenient for operation.

    Fast cutting, adopt imported intelligent cutting head and some other high-level system to guarantee the stability and advancement.

    Fast piercing and the production efficiency is promoted more than 50%.

    Lower running and maintenance cost
    Environmental protection, acquire laser protection function and suction system which guarantee operator's health and safty
    Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and acceleration speed.
    The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.


    Specification


    ModelBULL 16035
    Laser Power4000W
    Rapid Speed70m/min
    Maximum Acceleration0.6G
    Mechanical Repeatability±0.1mm
    Mechanical Accuracy (VDI 3441)±0.12mm/m
    Maximum Acceleration0.6G
    Mild Steel22mm
    Stainless Steel16mm
    Table Travel16000mm × 3500mm

    Application


    Penta BULL series Fiber Laser Cutting Machine mainly for cutting metallic material such as mild steel, stainless steel, aluminum alloy, titanium alloy, high temperature alloy ect. for sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, shipbuilding, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
