2KW Stainless Steel Laser Cutting Machine for Metal Sheet , 120m/Min Speed

    Buy cheap 2KW Stainless Steel Laser Cutting Machine for Metal Sheet , 120m/Min Speed from wholesalers

    Buy cheap 2KW Stainless Steel Laser Cutting Machine for Metal Sheet , 120m/Min Speed from wholesalers
    • Buy cheap 2KW Stainless Steel Laser Cutting Machine for Metal Sheet , 120m/Min Speed from wholesalers

    2KW Stainless Steel Laser Cutting Machine for Metal Sheet , 120m/Min Speed

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : SWING 6020
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

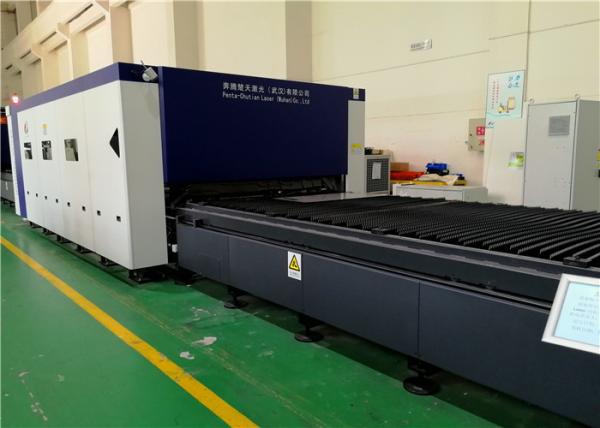

    2KW Stainless Steel Laser Cutting Machine for Metal Sheet , 120m/Min Speed


    2000W CNC Fiber Laser Stainless Steel Cutting Machine for Metal Sheet


    Penta SWING Series adopt european techlogy and be assembled in China with high quality. Equipped with intelligent cutting head origninally imported from Italy/Germany, which have several highlights: Capacitive sensor, automatically align the sheet; Auto focus, no focus readjustment needed while changing sheet; Smart piercing, 2-3 times faster on thick material; Piercing detection function, thus cutting process can start immediately without any extra waiting time. Lots of successful cases indicate that laser application can create high economic benefit and social benefit to users.


    Fiber Plus Model Features:


    - Equiped with IPG laser source from 1kw to 4kw

    - Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

    - Machine Frame designs with suction system and cooper plate protection

    - Double servo motor driver, bring higher speed and acceleration

    - Rapid Speed:120m/min,Acceleration:1.1G

    - Double driving synchonous technology make sure high speed and precision cutting

    - Fast pallet exchanger and full enclosure

    - Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

    - CNC control system and operation software, Lantek Nesting software

    - Cutting database help users choose optimal cutting parameter

    - Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available


    Technical specifications


    ModelSWING 6020
    Power2000W
    Rapid Speed120m/min
    Maximum Acceleration1.1G
    VDI 3441 Accuracy±0.03mm/m
    Mechanical Repeatability±0.01mm/m
    Maximum Thickness Mild Steel18mm
    Maximum Thickness Stainless Steel8mm
    Table Travel6000mm × 2000mm

    Range of Application


    High speed cutting solution for sheet metal industry including kitchenware, stainless steel decoration,cabinet, etc. widely used in textile machinery, mechanical engineering, elevator, automobile, machine tools and shipbuilding, decoration, oil drilling equipment, kitchenware, household appliance and laser jobshops.
