Heavy Duty Fiber Laser Metal Cutting Machine 1200W Power Italy Technology

    Buy cheap Heavy Duty Fiber Laser Metal Cutting Machine 1200W Power Italy Technology from wholesalers

    Buy cheap Heavy Duty Fiber Laser Metal Cutting Machine 1200W Power Italy Technology from wholesalers
    • Buy cheap Heavy Duty Fiber Laser Metal Cutting Machine 1200W Power Italy Technology from wholesalers
    • Buy cheap Heavy Duty Fiber Laser Metal Cutting Machine 1200W Power Italy Technology from wholesalers

    Heavy Duty Fiber Laser Metal Cutting Machine 1200W Power Italy Technology

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : SWING 3015
    Price : Negotiable
    Supply Ability : 2000 Sets per Year
    Delivery Time : 50 Days Upon Receipt of Payment
    • Product Details
    • Company Profile

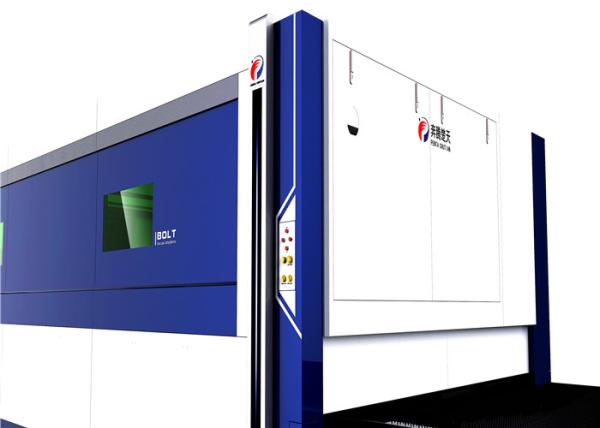

    Heavy Duty Fiber Laser Metal Cutting Machine 1200W Power Italy Technology


    Italy Technology Stainless Steel CNC Fiber Laser Cutting Machine Fiber Laser Cutter


    Penta SWING Series adopt europian techlogy and be assembled in China with high quality. Laser welding, heat treatment, laser cladding, laser cutting application, laser industry has accumulated a lot of process data, including transmission gear welding, saw blade welding ,radiator welding, steel galvanized steel plate welding ,filter welding ,heat ex-changer welding, aluminum alloy battery box welding, three-dimensional space welding, rapid prototyping of blade, heat treatment and cladding of hydraulic prop, cutting teeth, scraper chamber, large roll (38 tons), large blast furnace gas regulator (5 tons), large gear (4 tons) and tubing, etc, cutting for sheet metal, steel pipe. These successful cases indicate that laser application can create high economic benefit and social benefit to users.


    Fiber Plus Model Features:


    -Equiped with IPG laser source from 1kw to 3kw

    -Machine Frame designs with suction system and cooper plate protection

    -Double servo motor driver, bring higher speed and acceleration,

    -Rapid Speed:120m/min,Acceleration:1.1G

    -Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

    -Double driving synchonous technology make sure high speed and precision cutting

    -Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

    -CNC control system and operation software, Lantek Nesting software

    -Fast pallet exchanger and full enclosure

    -Cutting database help users choose optimal cutting parameter

    -Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available


    Technical specifications


    ModelSWING 3015
    Power1200W
    Rapid Speed120m/min
    Maximum Acceleration1.1G
    VDI 3441 Accuracy±0.03mm/m
    Mechanical Repeatability±0.01mm/m
    Maximum Thickness Mild Steel10mm
    Maximum Thickness Stainless Steel5mm
    Table Travel3000mm × 1500mm

    Range of Application


    High speed cutting solution for sheet metal industry including kitchenware, stainless steel decoration,cabinet, etc.


    About Penta Laser


    Penta Laser (Wuhan) was set up in 2007 by Italian El. En. Group, mainly dedicated in manufacturing and supplying High Power Laser cutting machine; Penta Laser (Wenzhou) was founded in 2013 to expand the Sales & Service on Asia-Pacific market due to the fastest growth rate in Industrial Laser field. Penta is the 1st supplier for Fiber 8,000W & 10,000W laser machine in China market which represents the leading role in Industry Laser field.


    Penta Workshop
