    1000W Handheld Fiber Laser Welding Machine For Automobile Industry

    Ask Lasest Price
    Brand Name : Penta Laser
    Model Number : HW-1000
    Certification : CE
    Price : USD 15000-USD 30000
    Payment Terms : L/C, T/T
    Supply Ability : 200 Sets per Month
    Delivery Time : 30 Working Days Upon Receiving Down Payment
    • Product Details
    • Company Profile

    1000W Handheld Fiber Laser Welding Machine For Automobile Industry

    1000W Hand Held Fiber Laser Welding Machine Operate By Hand For Metal Welding


    New design of SWAN series Hand Held laser welding machine. Easy to operate, able to weld SS,MS,AL etc. thin metal


    PENTA LASER

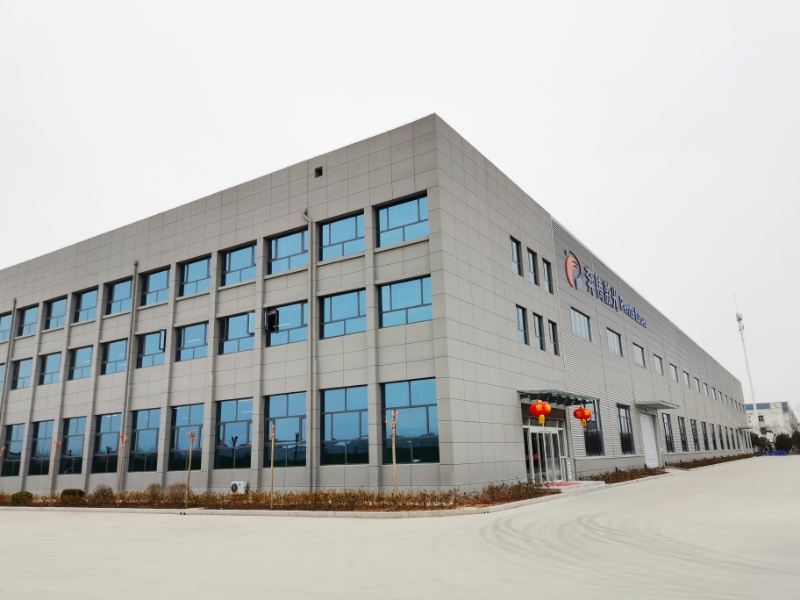

    Penta Laser (Wuhan) was set up in 2007 by Italian El. En. Group, mainly dedicated in manufacturing and supplying High Power Laser cutting machine; with more than 30 years of experience in laser system from El.En Group Italy, Penta Laser has core technologies in both manufacturing advanced high power laser source and CNC machinery integration with high compatibility. All design, development, production and quality control strictly follow European standards, as final integration is done in China under the quality testing by Italian engineers.


    Penta Laser's philosophy is to be the laser application expert and create value for clients, and develops lots of advanced laser processing equipment, not only fiber laser cutting machine, but also intelligent pipe laser cutting machine, robot 3D laser cutting machine, laser welding, auto loading and unloading system etc. Penta's products are renowned for its stability, reliability, and fast-response service as well. We have service and training centers in 35 major Chinese cities and more than 10 countries all over the world.



    Laser Welding Advantages


    Higher Quality:
    Materials welded by self-melting, no base material is needed;
    Deeper penetration and higher welding strength;
    Welding surface is bright and smooth, no need for polishing;
    Less heat input with little thermal deformation


    Higher Efficiency:
    Efficiency improved several times than traditional arc welding


    Higher Flexibility:
    Welding of different materials: carbon steel, stainless steel, aluminum, etc.
    Different welding types: butt joint, lap joint, corner joint, flanging joint


    Environmental Friendly:
    Little smoke during welding

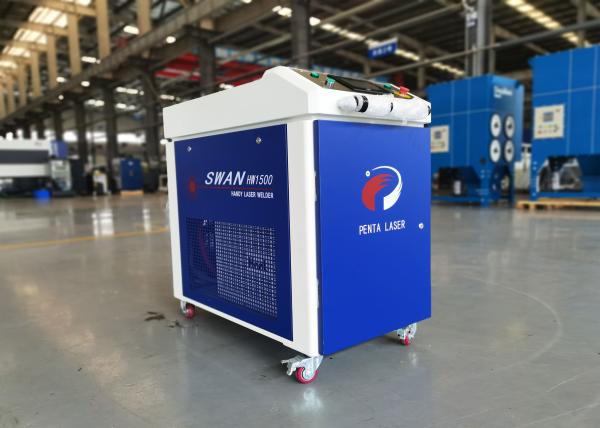

    Portable Mainframe

    Laser source and chiller are integrated into one machine, easy to move
    Upper and lower layer design for heat source isolation, ensuring working environment of laser source
    Easy to dismount and maintain


    Application
    Automobile: car body fusion welding,filler wire welding
    Metal processing: metal parts welding
    Locomotive:stainless steel welding, mild steel welding,aluminium alloy welding
    Aerospace: titanium alloy welding, supermalloy welding
    Home Appliances:Fume hood welding,tank welding,washing machine drum welding etc


    Wobble welding head:
    Six lighting mode, satisify different welding requirements
    Multiple nozzle options for different welding process
    Alumina handle, lightweight and comfortable to hold


    Welding Database

    30+ years laser welding experience of application in
    aerospace, metro, locomotive etc.
    Materials can be welded: carbon steel, stainless steel, aluminum, etc.


    Specifications

    ModelHW-1500
    Power1000W
    Power Regulation10%-100%
    Core Diameter50μm
    Cable Length10m
    Welding HeadWobble welding head
    Power Supply220V±10%/380V±10%
    WorKing Temperature10-40℃
    Laser Source OptionIPG/Raycus

    Penta Laser has service and training centers in 35 major Chinese cities and more than 10 countries all over the world. We will reply and provide maintenance instructions to customers through telephone within two hour or send well trained service engineer to conduct on-sight service within 24 hours.


    Laser Welding Head


    Swing welding head:Swing laser beam, weld joint is adjustable for higher welding width


    Laser Welding Head

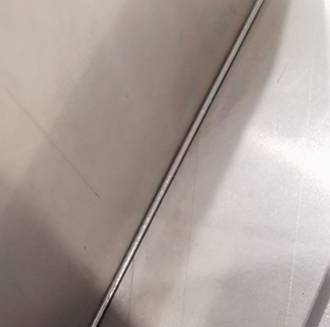

    Samples
